::: FT2 :::

Multimode tribometer

DESCRIPTION

FT2 ::: Description ::: Features ::: Delivery set ::: Software

Multimode tribometer FT2

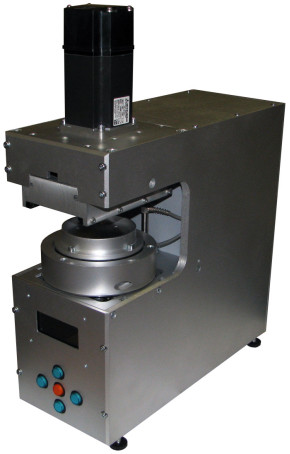

Multimode tribometer FT2 is intended for studying of material friction and wear characteristics as well as lubricant characteristics. The device is equipped with changeable actuator heads realizing one of two optional testing schemes: rotation of tree indentor against stationary disk or reciprocal motion of the indentor against flat sample. Implementation of testig schemes with stationary flat sample enables testing of lubricants wihout limitations and use of special techniques. The design of lower cell for flat sample also provides for its temperature control. The tribometer is powered by a servo drive allowing the actuatr speed control in wide range. The friction pair is loaded by the automated sytem driven by a stepper motor. The instrument allows to measure and record friction force (friction moment), linear wear of the friction pair, load on the friction pair and temperature athe the testing.

Change of the testing scheme is carried out by replacement of actuator head while friction force is measured with the single gauge cell of original design. As moving samples (indentors), balls (diam.3—4.5 mm) or pins (diam. 6.5 mm) can be employed.

On the front panel of the tribometer are placed alphanumerical LCD (displaying current measured parameters and other critical information about the operation mode) and function buttons for quick control over the device without the host PC.

FEATURES

FT2 ::: Description ::: Features ::: Delivery set ::: Software

Testing scheme	'three indentors on stationary disk'; 'indentor on stationary plate' (two changeable heads for the two modes)
Load range, not less than	10 mN – 10 (50) N (necessary maximum load and specific load range may be changed according to the custom demand)
Loading system	Automated via flat spring elements, driven by stepper motor
Maximum friction force, not less than	10 N
Friction force resolution, not less than	1 mN (force gauge element with inductive transducer)
Sample size (maximum)	diam.70 mm, thickness 8 mm (fixing by 4 holes diam.3.2 mm on diam.64 mm)
Indentor types	ball (diam.3–4.5 mm), pin (diam.6.5 mm)
Rotational motion (scheme 'three indentors on stationary disk')
Velosity	0.5–1500 rpm (0.84–3500 mm/s)
Maximum torque, not less than	450 mN/m
Minimum diameter of the stationary sample	60 mm
Radius of the indentor mounting in a rotation plane	16 mm (circumference 100.5 mm), 24 mm (circumference 150.8 mm)
Reciprocal motion (scheme 'indentor on stationary plate')
Indentor stroke	5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm (fixed length, changed by the leading roller shift inside the changeable head)
Frequency of reciprocal strokes	0.083–25 Hz
Linear speed (avearged per cycle)	0.08–500 mm/s (maximum speed is limited by mechanical resonance reason)
Supply voltage	220 V 50 Hz
Power consumption	below 300 W
Overall sizes (WхHхD)	140х470х350 mm
Weight, not more than	20 kg

DELIVERY SET

FT2 ::: Description ::: Features ::: Delivery set ::: Software

Code	Name	Q-ty
FT2-010	Testing unit (including two changeable actuator heads to realize two testing schemes, set of connection cables).	1
FT2-040	Software package for the device control and data acquizition (on CD, for Win32).	1
	OPTIONAL:
FT2-060	Set of disks (flat stationary samples) and balls (diam.3 and 4 mm).	1

* Not in same scale.
** Host PC is not included in the delivery set.

SOFTWARE

FT2 ::: Description ::: Features ::: Delivery set ::: Software

The tribometer software pack is intended for data acquisition at host PC with a Win32 OS (Windows XP SP2 and higher).

The program allows to acquire the digital data from the tribometer signal ADC unit and store them in a text format. Further processing? analysis and visualization may be carried in third part programs (e.g., SurfaceХplorer or Microsoft Excel).

Minimal configuration of host PC (not included in the delivery set): Celeron^®1.7 GHz, RAM 512 MB, HDD 160 GB, VRAM 64 MB, monitor 17" 1024x768x32 bit, MS Windows^® XP SP2, USB port.
