::: LT-111 :::
A device for deposition of monomolecular films
according to the Langmuir—Blodgett (LB) techniquee

DESCRIPTION

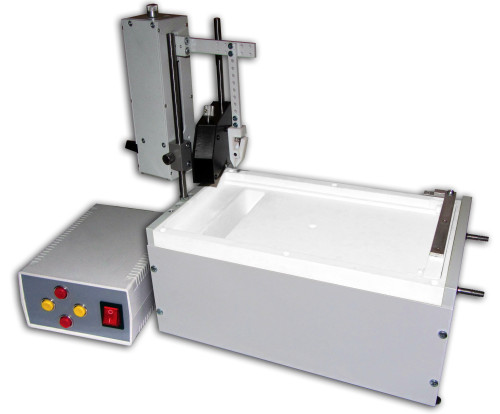

LB trough
A device for film deposition
by Langmuir—Blodgett technique LT-111

Langmuir–Blodgett trough ‘LT-111’ is intended

  • for application of monomolecular films on solid samples according to the Langmuir–Blodgett (LB) technique and for deposition of multimolecular films by corresponding layer-by-layer technique;
  • for measurement of compression isotherms (without limitation in number of surfactants in multicomponent mixtures);
  • for application of monomolecular films on solid samples according to the horizontal precipitation (HP) technique;
  • for experiments on construction mono- and mulimolecular composite coatings on solid surface;
  • for altering the surface properties (hydrophylic, optical, electrical etc. behavior);
  • for fundamental research at production of ultrathin films and their application as insulating and protective coatings, elements of molecular electronics, in biological studies for creation of analogs for bilayer lipid membranes etc..
This version features extra-wide dipping well suitable for flat samples of diameter up to 125 mm. That allows experimentation with, for example, silicon wafers directly.


FEATURES

Number of barriers: One
Velocity range of the barrier motion: 54–210 mm/min (single side comression)
Full free surface area: 463+1 cm2
Maximum free surface area confined with the barrier: 440+1 cm2
Minimum free surface area confined with the barrier: 128+2 cm2
Compressed (effective) area: 312 cm2
Liquid medium volume: 1000-1030 cm3
Dipping well: depth 110 mm, widht 130 mm
Maximum dimensions of the immersed substrate: 125х125x4 mm (h-w-t)
Delay between the layers deposition: 0–100000 s
Dipper mechanism stroke: 85 mm (vertical position of the unit can be adjusted manually)
Dipper mechanism velocity range: 0.12–70 mm/min, step of the velocity change 0.1 mm/min
Deposition rate: 0.002 to 2 mm/min
Surface tension sensor: Wilhelmy plate 2 cm2, accuracy ~0.1 mN/m (vertical position of the sensor can be adjusted manually)
Number of surafce tension sensors: One
Sensitivity of the surface tension sensor: 0.05 mN/m
Working range of the surface tension sensor: 0-80 mN/m (stepped and fine adjustment of the range are available)
Overall dimensions: Trough with mounted rig - 400x200x250 mm (w-d-h); Control unit - 220x165x105 mm (w-d-h); Weight 7/8 kg.
Supply voltage: 220 V 50 Hz
Power consumption: not more than 40 W
Additional accessories:
  • Substrate clamping holder for fixing the sample on the dipper lever.
  • Rig for film application by the horizontal precipitation method (by liquid medium draining).
  • Base slab suitable for liquid thermostating by outer source (not included).

TECHNIQUES
 Deposition of X-type LB film
 Deposition of Y-type LB film
 Deposition of Z-type LB film
  Note. * Horizontal precipitation (HP) method (by liquid medium draining). [Article]
    The method provides surface modification by extremely uniform and homogenous monolayer films (see, for example this paper). HP method allows transferring of monolayer films at various surfaces simultaneously from huge variety of surfactants (both in solid and liquid state) despite of polar head structure. The process of deposition is simple and fast. In particular, the surface of metallized silicon wafer can be modified by HP method within 3–5 minutes.



DELIVERY SET
Code Name Q-ty
LT-111-010 LB trough with basic accessories (Base slab suitable for liquid thermostating by outer source (not included); Substrate clamping holder for fixing the sample on the dipper lever; Rig for film application by the horizontal precipitation method) 1
LT-111-020 Dipper unit (85 mm stroke) 1
LT-111-030 Surface pressure sensor 1
LT-111-040 Control electronic unit1 1
  OPTIONAL
AW-02 PTFE aspirator for water-jet cleaning of the aqueous surface. 1
DT-03 A Microdoser for automated application of substance on to aqueous surface in the trough. 1
LT-111-090 A set of calibrating surfactants: stearic acid, behenic acid, acetyl alcohol. ask
Note:
1 Basic set also includes control software (for Win32) and operation manual.


* Host PC not included in the delivery set



SOFTWARE

Panel of LB trough control software

Software for LB trough control and data acquisition is a Win32 application running under OS Windows.

The software is built according to the modular scheme oriented to perform specific application technique and provides all preliminary settings and calibration necessary for the LB trough operation as well control over the systems (mechanisms of the barrier movement and sample dipping/lifting) at the film application.

Acquired data can be saved in special format or text files and can be then processed, visualized and analysed in the program itself or with third party software (e.g. SurfaceXplorer package or Microsoft Excel).

Minimal configuration of host PC (not included in the delivery set): Celeron® 1.7 GHz, RAM 512 MB, HDD 160 GB, VRAM 64 MB, monitor 1024x768x32 bit, MS Windows® XP SP2, 1 free USB port.
