::: C-360 :::
A case for electronic devices
Other dimension types: C-280
DESCRIPTION
Case C-360 has been designed for electronic devices assembling and similar purposes*. The case is manufactured of aluminum alloy with decorative coating and provides full electromagnetic shielding. Constructively, case C-360 is assembled as a frame of shaped elements to which outer flat panels are mounted with use of srews. That provides ease and convenience both at the assembling and maintenance/repair of end device. Components inside the case may be mounted both on the frame elements and additional rails that can be installe along or across the case.
*Dimensions of case C-360 correspond to standard type 'Mini-Tower' of desktop PC's.
FEATURES
| |
|
| Overall dimensions (w-h-d): |
360x170x340 mm* (horizontal version);
170x360x340 mm* (vertical version) |
| Weight: |
4.8 kg |
| Volume: |
0.020808 m3 |
| Space for mounting inside the case (min): |
356x150x336 mm or 324x166x304 mm |
| Rails for mounting components inside the case: |
L=348 mm (across the case)
or L=326 mm (along the case) |
* Without feet (adjustable feet - height 6 to 20 mm, fixed feet - height 10 mm may jut out for 23 mm to the sides) and heads of panel fixing screws (fix panels and may jut out for max=2 mm to each side).
** By special order, manufacture of the case of similar design to other dimensions is possible.
DELIVERY SET

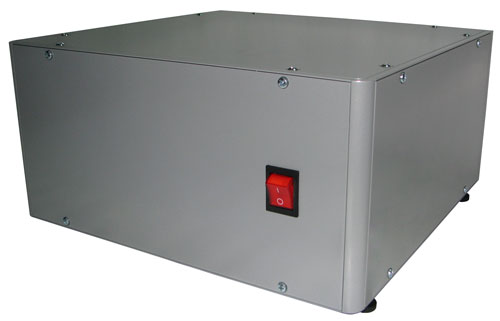

Case C-360 - horizontal version
(material - aluminum alloy with decorative coating) |

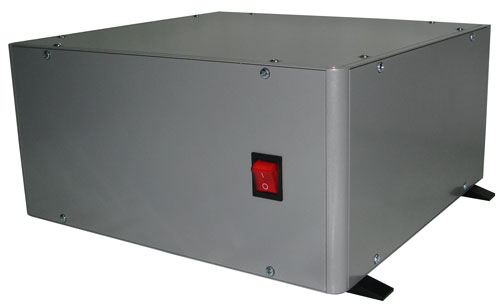

The case (horizontal version) on fixed feet |
| Code |
Name |
Q-ty |
| C-360-010 |
Set of elements of the case frame |
1 |
| C-360-020 |
Bottom panel (347x327 mm, S=2 mm) |
1 |
| C-360-025 |
Top panel (347x327 mm, S=2 mm) |
1 |
| C-360-030 |
Front panel (335x167 mm, S=2 mm) |
1 |
| C-360-035 |
Rear panel (335x167 mm, S=2 mm) |
1 |
| C-360-040 |
Side panel (315x167 mm, S=2 mm) |
2 |
| FA-D20M6 |
Adjustable feet (H=6...20 mm) |
4 |
| |
OPTIONAL: |
|
| C-360-050 |
Transversal rail (cross-section 12x8 mm, L=348 mm, 2 holes diam. 4.5 mm at 338 mm) |
ask |
| C-360-055 |
Transversal rail (cross-section 10x10 mm, L=348 mm, 2 holes diam.4.5 mm at 338 mm) |
ask |
| C-360-060 |
Longitudinal rail (cross-section 12x8 mm, L=348 mm, 2 holes diam. 4.5 mm at 318 mm) |
ask |
| C-360-065 |
Longitudinal rail (сечение 10x10 mm, L=348 mm, 2 holes diam.4.5 mm at 318 mm) |
ask |
| FF-10M6 |
Fixed feet (non-adjustable, H=10 mm; juts out the case dimensions for 23 mm to left and right sides) |
4 |
Note
1 The delivery set includes fixing screws and assembly instruction.
2 The frame elements, panels and inner rails are delivered without additional holes for ventilation, placement and mounting of component of end user, switches, connectors,etc. by default.
3 By separate order, manufacture of the frame elements, panels and inner rails with additional mounting and ventilation holes according to the charts of end user is possible.
Case C-360v - vertical version
(material - aluminum alloy with decorative coating) |

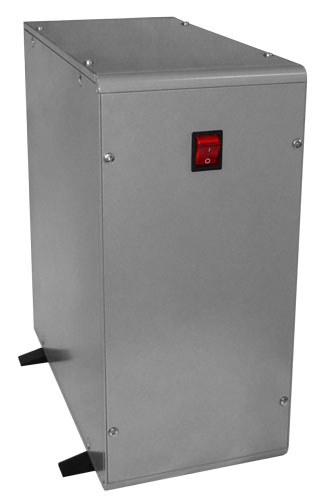

The case (vertical version) on fixed feet |
| Code |
Name |
Q-ty |
| C-360-010 |
Set of elements of the case frame |
1 |
| C-360-025 |
Side panel (347x327 mm, S=2 mm) |
2 |
| C-360-030 |
Front panel (335x167 mm, S=2 mm) |
1 |
| C-360-035 |
Rear panel (335x167 mm, S=2 mm) |
1 |
| C-360-040 |
Top panel (315x167 mm, S=2 mm) |
2 |
| FF-H10 |
Fixed feet (non-adjustable, H=10 mm; juts out the case dimensions for 23 mm to left and right sides) |
4 |
| |
OPTIONAL: |
|
| C-360-050 |
Transversal rail (cross-section 12x8 mm, L=348 mm, 2 holes diam. 4.5 mm at 338 mm) |
ask |
| C-360-055 |
Transversal rail (cross-section 10x10 mm, L=348 mm, 2 holes diam.4.5 mm at 338 mm) |
ask |
| C-360-060 |
Longitudinal rail (cross-section 12x8 mm, L=348 mm, 2 holes diam. 4.5 mm at 318 mm) |
ask |
| C-360-065 |
Longitudinal rail (сечение 10x10 mm, L=348 mm, 2 holes diam.4.5 mm at 318 mm) |
ask |
| FA-D20M6 |
Adjustable feet (H=6...20 mm) |
4 |
Note
1 The delivery set includes fixing screws and assembly instruction.
2 The frame elements, panels and inner rails are delivered without additional holes for ventilation, placement and mounting of component of end user, switches, connectors,etc. by default.
3 By separate order, manufacture of the frame elements, panels and inner rails with additional mounting and ventilation holes according to the charts of end user is possible.
|
