::: C-280 :::

A case for electronic devices

Other dimension types: C-360

DESCRIPTION

C-280 ::: Description ::: Features ::: Delivery set

A case for electronic devices C-280
(horizontal version)

Case C-280 has been designed for electronic devices assembling and similar purposes. The case is manufactured of aluminum alloy with decorative coating and provides full electromagnetic shielding. Constructively, case C-280 is assembled as a frame of shaped elements to which outer flat panels are mounted with use of srews. That provides ease and convenience both at the assembling and maintenance/repair of end device. Components inside the case may be mounted both on the frame elements and additional rails that can be installe along or across the case.

FEATURES

C-280 ::: Description ::: Features ::: Delivery set


Overall dimensions (w-h-d):	280x110x280 mm* (horizontal version); 110x280x280 mm* (vertical version)
Weight:	2.5 kg
Volume:	0.008624 m³
Space for mounting inside the case (min):	276x90x240 mm or 244x106x244 mm (please take into account space for rails inside)
Rails for mounting components inside the case:	L=294 mm

* Without feet (adjustable feet - height 6 to 20 mm, fixed feet - height 10 mm may jut out for 23 mm to the sides) and heads of panel fixing screws (fix panels and may jut out for max=2 mm to each side).

** By special order, manufacture of the case of similar design to other dimensions is possible.

DELIVERY SET

C-280 ::: Description ::: Features ::: Delivery set

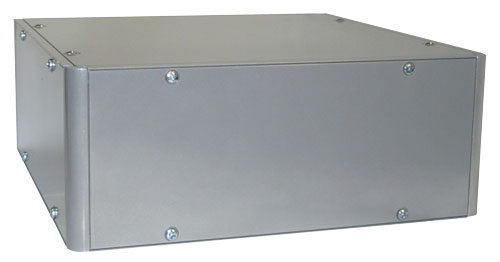

Case C-280 - horizontal version
(material - aluminum alloy with decorative coating)

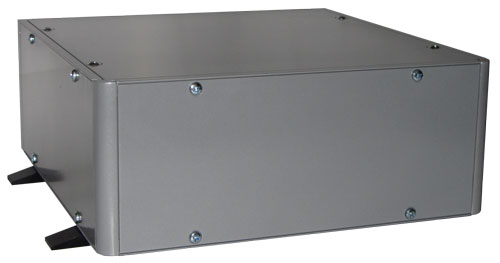

The case (horizontal version) on fixed feet

Code	Name	Q-ty
C-280-010	Set of elements of the case frame	1
C-280-020	Bottom panel (267x267 mm, S=2 mm)	1
C-280-025	Top panel (267x267 mm, S=2 mm)	1
C-280-030	Front panel (255x107 mm, S=2 mm)	1
C-280-035	Rear panel (255x107 mm, S=2 mm)	1
C-280-040	Side panel (255x107 mm, S=2 mm)	2
FA-D20M6	Adjustable feet (H=6...20 mm)	4
	OPTIONAL:
C-280-050	Rail (cross-section 12x8 mm, L=294 mm, 2 holes diam. 4.5 mm at 258 mm)	ask
C-280-055	Rail (cross-section 10x10 mm, L=294 mm, 2 holes diam.4.5 mm at 258 mm)	ask
C-280-070	Rail (cross-section 12x4 mm, L=294 mm, 2 holes diam. 4.5 mm at 258 mm)	ask
FF-10M6	Fixed feet (non-adjustable, H=10 mm; juts out the case dimensions for 23 mm to left and right sides when oriented outside)	4

Note

¹ The delivery set includes fixing screws and assembly instruction.

² The frame elements, panels and inner rails are delivered without additional holes for ventilation, placement and mounting of component of end user, switches, connectors,etc. by default.

³ By separate order, manufacture of the frame elements, panels and inner rails with additional mounting and ventilation holes according to the charts of end user is possible.

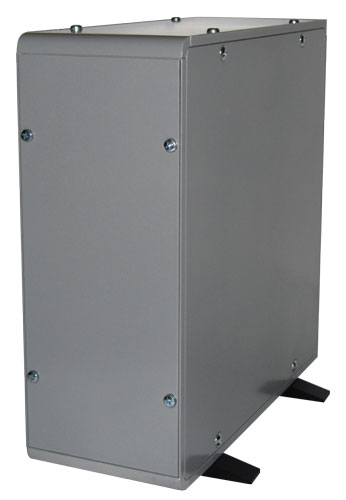

Case C-280v - vertical version
(material - aluminum alloy with decorative coating)

The case (vertical version) on fixed feet

Code	Name	Q-ty
C-280-010	Set of elements of the case frame	1
C-280-025	Side panel (267x267 mm, S=2 mm)	2
C-280-030	Front panel (255x107 mm, S=2 mm)	1
C-280-035	Rear panel (255x107 mm, S=2 mm)	1
C-280-040	Top panel (255x107 mm, S=2 mm)	2
FF-H10	Fixed feet (non-adjustable, H=10 mm; juts out the case dimensions for 23 mm to left and right sides when oriented outside)	4
	OPTIONAL:
C-280-050	Rail (cross-section 12x8 mm, L=294 mm, 2 holes diam. 4.5 mm at 258 mm)	ask
C-280-055	Rail (cross-section 10x10 mm, L=294 mm, 2 holes diam.4.5 mm at 258 mm)	ask
C-280-070	Rail (cross-section 12x4 mm, L=294 mm, 2 holes diam. 4.5 mm at 258 mm)	ask

Note

¹ The delivery set includes fixing screws and assembly instruction.

² The frame elements, panels and inner rails are delivered without additional holes for ventilation, placement and mounting of component of end user, switches, connectors,etc. by default.

³ By separate order, manufacture of the frame elements, panels and inner rails with additional mounting and ventilation holes according to the charts of end user is possible.
